A10505RNZQ

C&K

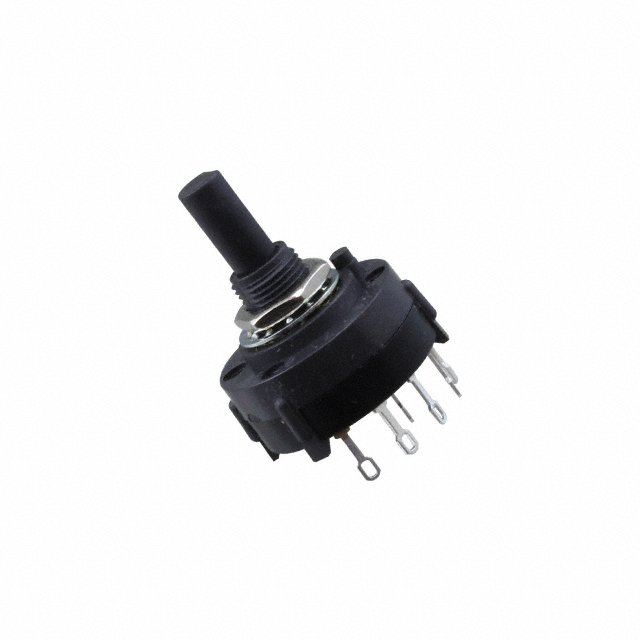

Image may be representation. See specifications for product details.

Product Overview

Part Number:	A10505RNZQ
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 5POS 2.5A 125V
Datasheets:	A10505RNZQ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14565 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14565 pcs

Reference Price (In US Dollars)

1 pcs: $2.149

10 pcs: $1.775

25 pcs: $1.752

50 pcs: $1.612

100 pcs: $1.542

250 pcs: $1.378

500 pcs: $1.355

1000 pcs: $1.331

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.149

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of A10505RNZQ

Part Number	A10505RNZQ	Manufacturer	C&K
Description	SWITCH ROTARY 5POS 2.5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14565 pcs	Data sheet	A10505RNZQ.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Series	A
Panel Cutout Dimensions	Circular - 9.80mm Dia	Other Names	A10505RNZQ-ND CKN11782
Operating Force	-	Number of Positions	5
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 5 Position SP5T 2.5A (AC), 350mA (DC) 125VAC Panel Mount
Depth Behind Panel	20.83mm	Current Rating	2.5A (AC), 350mA (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver (Ag)
Contact Finish	Silver	Circuit per Deck	SP5T
Angle of Throw	30°	Actuator Type	Flatted (6.35mm Dia)
Actuator Length	12.70mm
