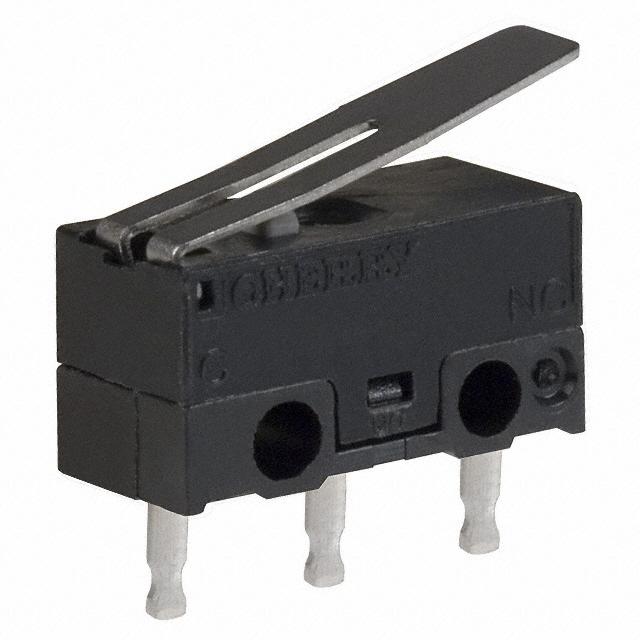

DG23-B1LA

Cherry Switches (ZF Electronics)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DG23-B1LA
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 50MA 30V
Datasheets:	DG23-B1LA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34206 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 34206 pcs

Reference Price (In US Dollars)

1 pcs: $0.857

10 pcs: $0.792

25 pcs: $0.743

50 pcs: $0.726

100 pcs: $0.578

250 pcs: $0.545

500 pcs: $0.512

1000 pcs: $0.479

5000 pcs: $0.446

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:Info@infinity-electronic.com

Target Price:
Qty:

Total:$0.857

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DG23-B1LA

Part Number	DG23-B1LA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 50MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34206 pcs	Data sheet	DG23-B1LA.pdf
Voltage Rating - DC	30V	Termination Style	PC Pin
Switch Function	On-Mom	Series	DG
Release Force	-	Pretravel	0.071" (1.8mm)
Packaging	Bulk	Overtravel	0.022" (0.55mm)
Other Names	CH168 DG23B1LA DG2C-B1LA	Operating Temperature	-25°C ~ 85°C
Operating Position	0.268" (6.8mm)	Operating Force	45gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	200,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	50mA (DC)	Circuit	SPDT
Actuator Type	Lever, Straight
