M505015F

Crydom

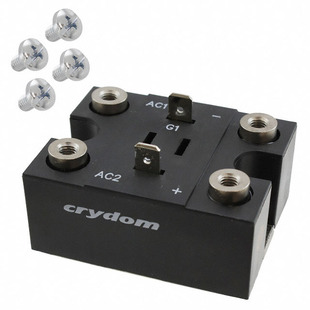

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M505015F
Manufacturer/Brand:	Crydom
Product description	MODULE SCR 50A 480VAC
Datasheets:	1.M505015F.pdf 2.M505015F.pdf 3.M505015F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	980 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 980 pcs

Reference Price (In US Dollars)

1 pcs: $36.573

10 pcs: $34.852

50 pcs: $33.25

100 pcs: $32.281

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$36.573

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M505015F

Part Number	M505015F	Manufacturer	Crydom
Description	MODULE SCR 50A 480VAC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	980 pcs	Data sheet	1.M505015F.pdf 2.M505015F.pdf 3.M505015F.pdf
Voltage - Off State	1.2kV	Voltage - Gate Trigger (Vgt) (Max)	3V
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)	Series	-
Packaging	Bulk	Package / Case	Module
Other Names	CC2245 M505015F-ND Q1332436	Operating Temperature	-40°C ~ 125°C (TJ)
Number of SCRs, Diodes	2 SCRs, 2 Diodes	Mounting Type	Chassis Mount
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	SCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
Current - Non Rep. Surge 50, 60Hz (Itsm)	600A @ 60Hz	Current - Gate Trigger (Igt) (Max)	150mA
