HomeProductsInductors, Coils, ChokesFixed InductorsIMS05BH1R2K

IMS05BH1R2K

Dale / VishayDale / Vishay

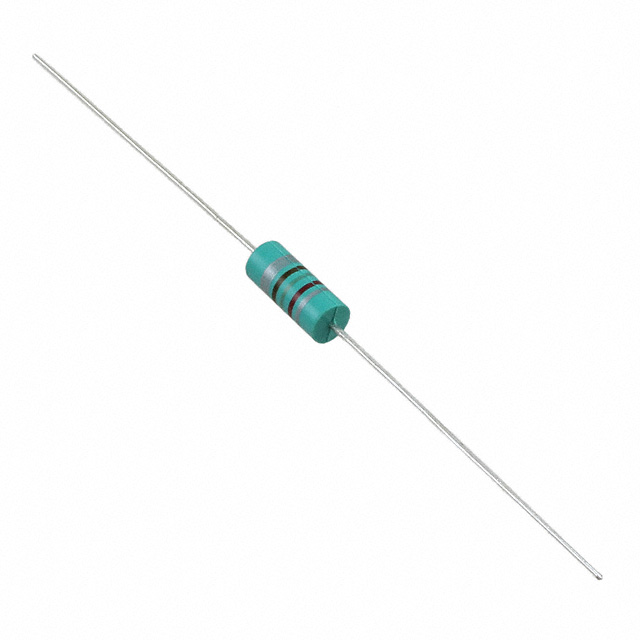

IMS05BH1R2K Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: IMS05BH1R2K
Manufacturer/Brand: Dale / Vishay
Product description IMS-5 1.2 10% B08
Datasheets: IMS05BH1R2K.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6413 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6413 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of IMS05BH1R2K

Part Number IMS05BH1R2K Manufacturer Dale / Vishay
Description IMS-5 1.2 10% B08 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6413 pcs Data sheet IMS05BH1R2K.pdf
Type Molded Tolerance ±10%
Supplier Device Package Axial Size / Dimension 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Shielding Shielded Series IMS-5
Ratings - Q @ Freq 44 @ 7.9MHz
Packaging - Package / Case Axial
Operating Temperature -55°C ~ 105°C Mounting Type Through Hole
Material - Core Iron Powder Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 7.9MHz Inductance 1.2µH
Height - Seated (Max) - Frequency - Self Resonant 130MHz
Features - Detailed Description 1.2µH Shielded Molded Inductor 895mA 100 mOhm Max Axial
DC Resistance (DCR) 100 mOhm Max Current Rating 895mA
Current - Saturation -
