G125-MS12005L0P

Harwin

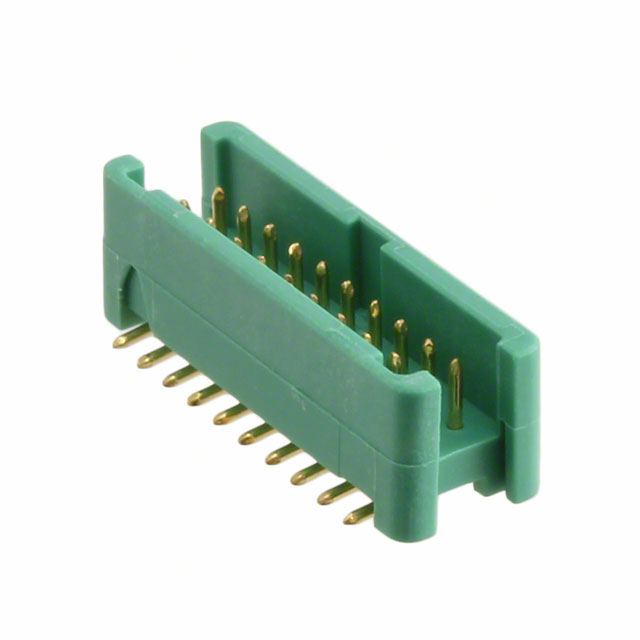

Image may be representation. See specifications for product details.

Product Overview

Part Number:	G125-MS12005L0P
Manufacturer/Brand:	Harwin
Product description	1.25MM M VERT SMT 2X10 POS
Datasheets:	1.G125-MS12005L0P.pdf 2.G125-MS12005L0P.pdf 3.G125-MS12005L0P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10364 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10364 pcs

Reference Price (In US Dollars)

1 pcs: $2.831

10 pcs: $2.714

100 pcs: $2.242

500 pcs: $1.888

1000 pcs: $1.652

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.831

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of G125-MS12005L0P

Part Number	G125-MS12005L0P	Manufacturer	Harwin
Description	1.25MM M VERT SMT 2X10 POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10364 pcs	Data sheet	1.G125-MS12005L0P.pdf 2.G125-MS12005L0P.pdf 3.G125-MS12005L0P.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Gecko	Row Spacing - Mating	0.049" (1.25mm)
Pitch - Mating	0.049" (1.25mm)	Packaging	Strip
Overall Contact Length	-	Other Names	952-2446 G125-MS12005L0P-ND
Operating Temperature	-65°C ~ 150°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.35mm, 7.45mm, 7.8mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Insulation Height	0.193" (4.90mm)	Insulation Color	Green
Ingress Protection	-	Features	Pick and Place, Solder Retention
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 20 position 0.049" (1.25mm)
Current Rating	2A per Contact	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	-	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
