HIF3CA-20PA-2.54DSA(71)

Hirose

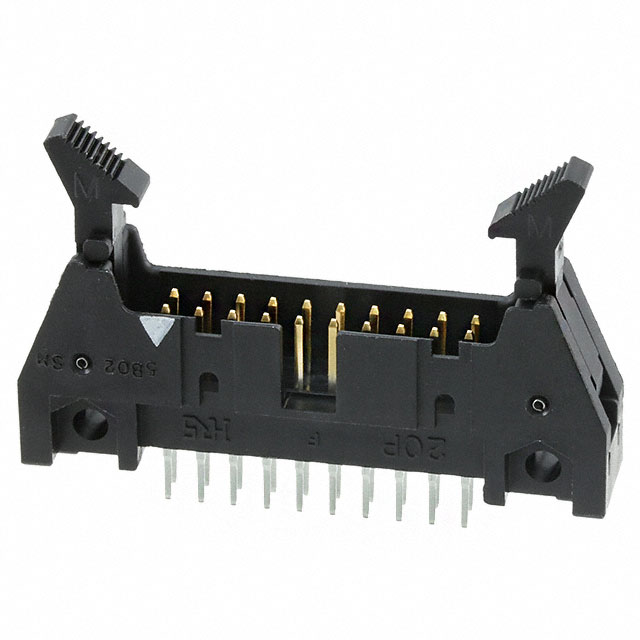

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HIF3CA-20PA-2.54DSA(71)
Manufacturer/Brand:	Hirose
Product description	CONN HDR 20POS 2.54MM
Datasheets:	HIF3CA-20PA-2.54DSA(71).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23090 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23090 pcs

Reference Price (In US Dollars)

1 pcs: $1.264

10 pcs: $1.214

140 pcs: $1.012

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HIF3CA-20PA-2.54DSA(71)

Part Number	HIF3CA-20PA-2.54DSA(71)	Manufacturer	Hirose
Description	CONN HDR 20POS 2.54MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23090 pcs	Data sheet	HIF3CA-20PA-2.54DSA(71).pdf
Voltage Rating	200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	HIF3C	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.657" (16.70mm)	Other Names	610-0704-0-71 H123806 HIF3CA-20PA-2.54DSA(71)-ND
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.701" (17.80mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Latch Lock/Eject Hooks	Detailed Description	Connector Header Through Hole 20 position 0.100" (2.54mm)
Current Rating	1A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	0.236" (6.00mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
