MNR14ERAPJ560

LAPIS Semiconductor

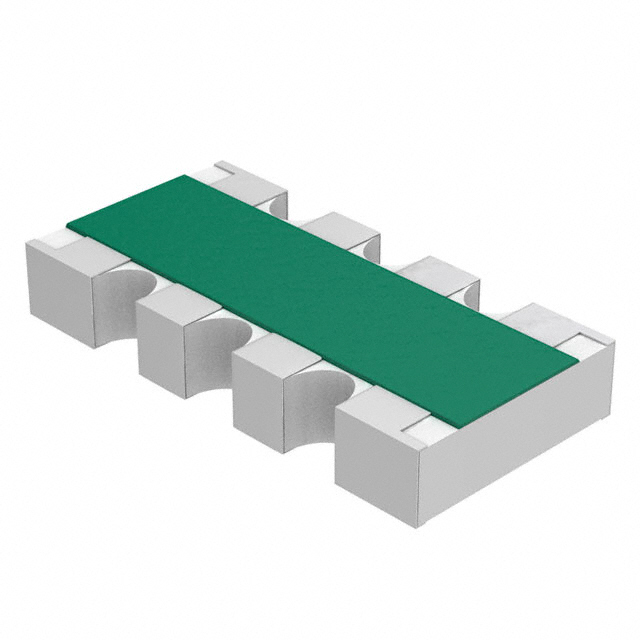

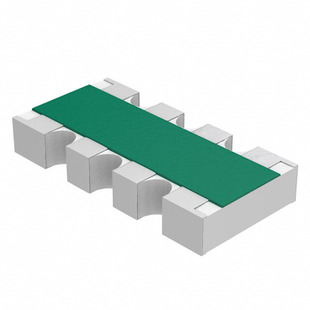

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MNR14ERAPJ560
Manufacturer/Brand:	LAPIS Semiconductor
Product description	RES ARRAY 4 RES 56 OHM 1206
Datasheets:	1.MNR14ERAPJ560.pdf 2.MNR14ERAPJ560.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1039390 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1039390 pcs

Reference Price (In US Dollars)

1 pcs: $0.035

10 pcs: $0.014

25 pcs: $0.01

50 pcs: $0.008

100 pcs: $0.006

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.035

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MNR14ERAPJ560

Part Number	MNR14ERAPJ560	Manufacturer	LAPIS Semiconductor
Description	RES ARRAY 4 RES 56 OHM 1206	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1039390 pcs	Data sheet	1.MNR14ERAPJ560.pdf 2.MNR14ERAPJ560.pdf
Tolerance	±5%	Temperature Coefficient	±200ppm/°C
Supplier Device Package	-	Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Series	MNR	Resistor-Ratio-Drift	-
Resistor Matching Ratio	-	Resistance (Ohms)	56
Power Per Element	62.5mW	Packaging	Original-Reel®
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals	Other Names	RHM1482DKR
Operating Temperature	-55°C ~ 155°C	Number of Resistors	4
Number of Pins	8	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.024" (0.60mm)	Detailed Description	56 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Circuit Type	Isolated	Applications	-
