SWC5547AK120-500

Laird Technologies

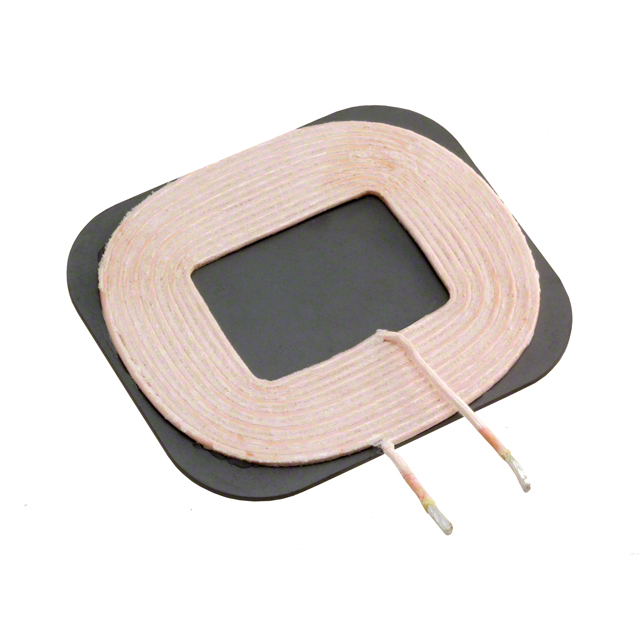

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SWC5547AK120-500
Manufacturer/Brand:	Laird Technologies
Product description	TX 1 COIL 1 LAYER 12.5UH
Datasheets:	1.SWC5547AK120-500.pdf 2.SWC5547AK120-500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13760 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13760 pcs

Reference Price (In US Dollars)

1 pcs: $2.564

10 pcs: $2.33

100 pcs: $1.585

500 pcs: $1.445

1000 pcs: $1.352

2500 pcs: $1.305

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.564

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SWC5547AK120-500

Part Number	SWC5547AK120-500	Manufacturer	Laird Technologies
Description	TX 1 COIL 1 LAYER 12.5UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13760 pcs	Data sheet	1.SWC5547AK120-500.pdf 2.SWC5547AK120-500.pdf
Type	1 Coil, 1 Layer	Tolerance	±10%
Series	SWC	Q @ Freq	90 @ 100kHz
Other Names	240-2781	Operating Temperature	-40°C ~ 125°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	12.5µH	Function	Transmitter
Frequency - Self Resonant	-	Detailed Description	1 Coil, 1 Layer 12.5µH Wireless Charging Coil Transmitter 65 mOhm Max
DC Resistance (DCR)	65 mOhm Max	Current Rating	-
Current - Saturation	-
