APT70GR120JD60

Microsemi

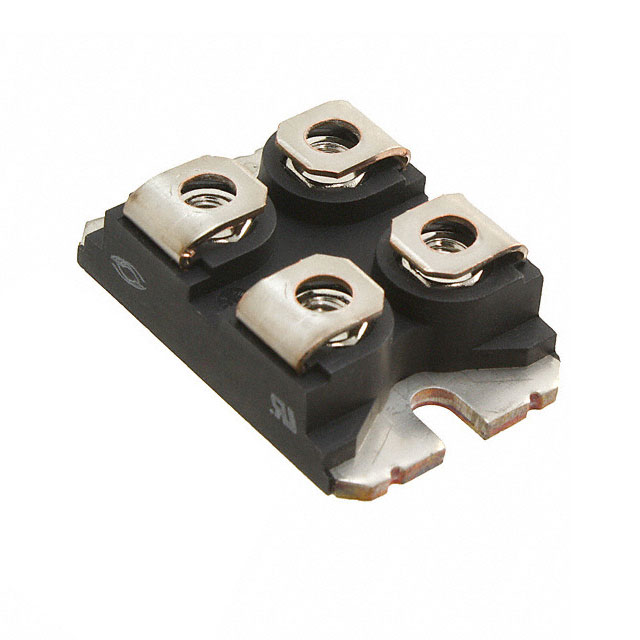

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APT70GR120JD60
Manufacturer/Brand:	Microsemi
Product description	IGBT 1200V 112A 543W SOT227
Datasheets:	APT70GR120JD60.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2589 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2589 pcs

Reference Price (In US Dollars)

1 pcs: $13.677

10 pcs: $12.651

30 pcs: $11.625

100 pcs: $10.805

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$13.677

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APT70GR120JD60

Part Number	APT70GR120JD60	Manufacturer	Microsemi
Description	IGBT 1200V 112A 543W SOT227	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2589 pcs	Data sheet	APT70GR120JD60.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 70A
Supplier Device Package	SOT-227	Series	-
Power - Max	543W	Package / Case	SOT-227-4
Operating Temperature	-55°C ~ 150°C (TJ)	NTC Thermistor	No
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	7.26nF @ 25V
Input	Standard	IGBT Type	NPT
Detailed Description	IGBT Module NPT Single 1200V 112A 543W Chassis Mount SOT-227	Current - Collector Cutoff (Max)	1.1mA
Current - Collector (Ic) (Max)	112A	Configuration	Single
