APT75GP120J

Microsemi

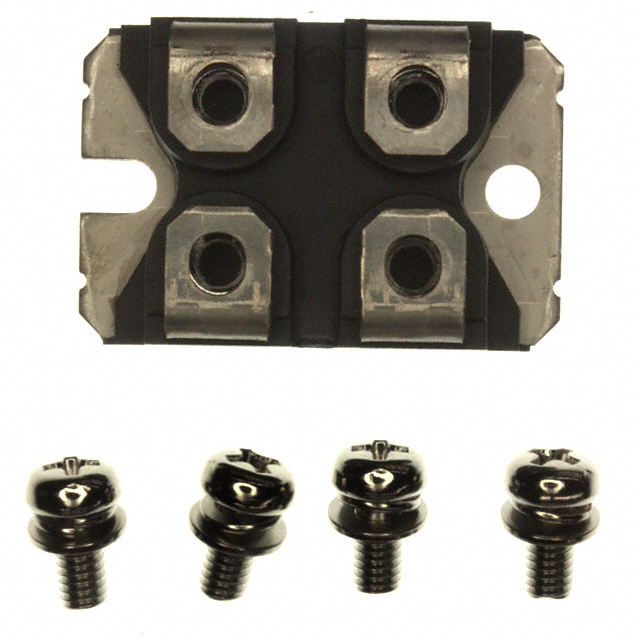

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APT75GP120J
Manufacturer/Brand:	Microsemi
Product description	IGBT 1200V 128A 543W SOT227
Datasheets:	1.APT75GP120J.pdf 2.APT75GP120J.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2580 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2580 pcs

Reference Price (In US Dollars)

1 pcs: $14.579

10 pcs: $13.635

30 pcs: $12.61

100 pcs: $11.822

250 pcs: $11.034

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.579

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APT75GP120J

Part Number	APT75GP120J	Manufacturer	Microsemi
Description	IGBT 1200V 128A 543W SOT227	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2580 pcs	Data sheet	1.APT75GP120J.pdf 2.APT75GP120J.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	3.9V @ 15V, 75A
Supplier Device Package	ISOTOP®	Series	POWER MOS 7®
Power - Max	543W	Package / Case	ISOTOP
Other Names	APT75GP120JMI APT75GP120JMI-ND	Operating Temperature	-55°C ~ 150°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	7.04nF @ 25V	Input	Standard
IGBT Type	PT	Detailed Description	IGBT Module PT Single 1200V 128A 543W Chassis Mount ISOTOP®
Current - Collector Cutoff (Max)	1mA	Current - Collector (Ic) (Max)	128A
Configuration	Single
