ED115/2DS-DG

On-Shore Technology, Inc.

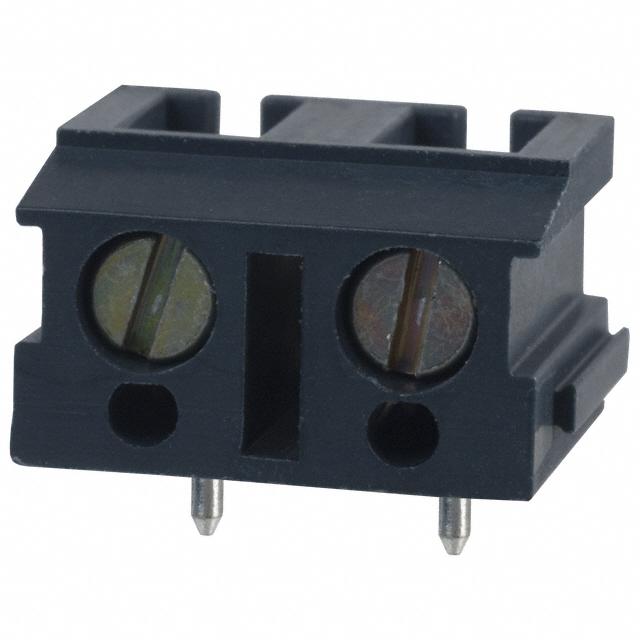

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED115/2DS-DG
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 7.50MM HORZ 2POS
Datasheets:	ED115/2DS-DG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	89195 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 89195 pcs

Reference Price (In US Dollars)

1 pcs: $0.421

10 pcs: $0.297

25 pcs: $0.277

50 pcs: $0.252

100 pcs: $0.251

250 pcs: $0.212

500 pcs: $0.20

1000 pcs: $0.178

5000 pcs: $0.145

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:Info@infinity-electronic.com

Target Price:
Qty:

Total:$0.421

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED115/2DS-DG

Part Number	ED115/2DS-DG	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 7.50MM HORZ 2POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	89195 pcs	Data sheet	ED115/2DS-DG.pdf
Wire Termination	Screw - Leaf Spring, Wire Guard	Wire Gauge	14-22 AWG
Voltage	300V	Torque - Screw	0.5 Nm (4.4 Lb-In)
Series	ED115/DS	Screw Thread	M3
Screw Material - Plating	-	Positions Per Level	2
Pitch	0.295" (7.50mm)	Packaging	Bulk
Other Names	ED115-2DS ED115-2DS-DG ED115/2DS ED1152DSDG ED1607	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Vertical with Board
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA), Nylon
Features	Interlocking (Side)	Detailed Description	2 Position Wire to Board Terminal Block Vertical with Board 0.295" (7.50mm) Through Hole
Current	20A	Contact Material - Plating	Brass
Color	Gray	Clamp Material - Plating	Steel, Stainless
