ACNH3112

Panasonic

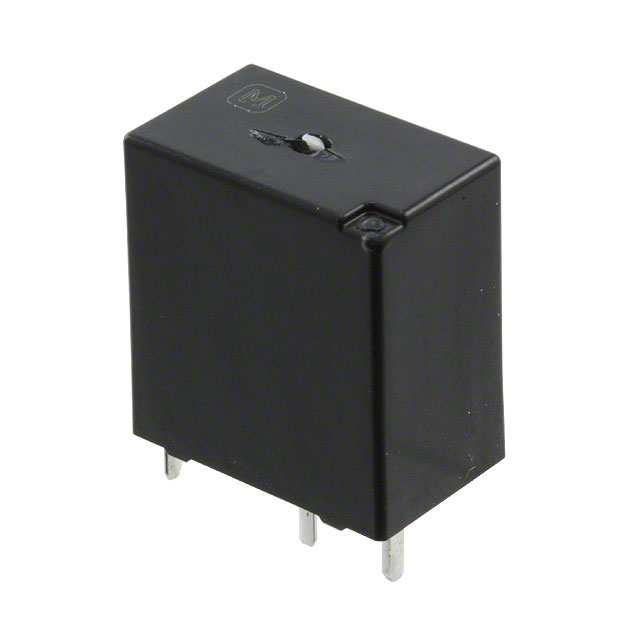

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACNH3112
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPST 30A 12V
Datasheets:	1.ACNH3112.pdf 2.ACNH3112.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17128 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17128 pcs

Reference Price (In US Dollars)

1 pcs: $1.668

10 pcs: $1.565

25 pcs: $1.391

50 pcs: $1.321

100 pcs: $1.252

250 pcs: $1.113

500 pcs: $1.043

1000 pcs: $0.974

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.668

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACNH3112

Part Number	ACNH3112	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPST 30A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17128 pcs	Data sheet	1.ACNH3112.pdf 2.ACNH3112.pdf
Turn On Voltage (Max)	5.5 VDC	Turn Off Voltage (Min)	0.8 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	ACNH	Release Time	10ms
Packaging	Tube	Other Names	255-5271 ACNH3112-ND
Operating Temperature	-40°C ~ 110°C	Operate Time	10ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Contact Rating (Current)	30A	Contact Material	Silver Alloy, Cadmium Free
Contact Form	SPST-NO (1 Form A)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	225 Ohms
Coil Power	640 mW	Coil Current	53.3mA
