CB1-T-M-12V

Panasonic

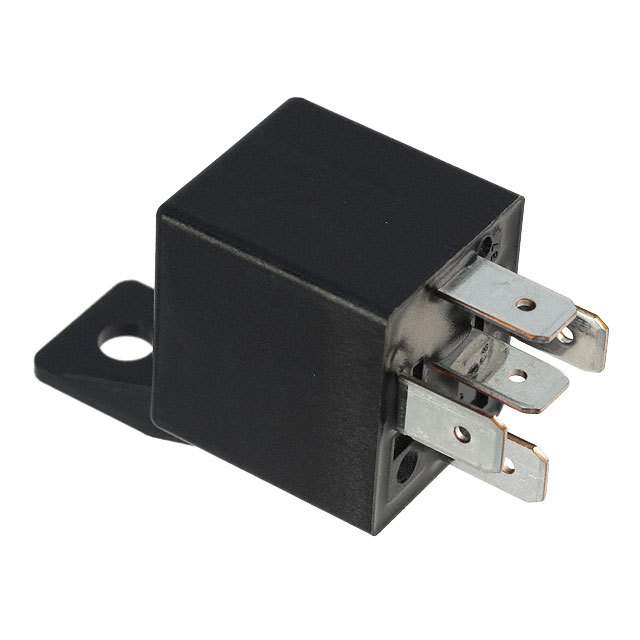

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CB1-T-M-12V
Manufacturer/Brand:	Panasonic
Product description	CB RELAY HR 1 FORM C 12V
Datasheets:	CB1-T-M-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11123 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11123 pcs

Reference Price (In US Dollars)

1 pcs: $2.613

10 pcs: $2.45

25 pcs: $2.178

50 pcs: $2.069

100 pcs: $1.96

250 pcs: $1.742

500 pcs: $1.633

1000 pcs: $1.524

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.613

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CB1-T-M-12V

Part Number	CB1-T-M-12V	Manufacturer	Panasonic
Description	CB RELAY HR 1 FORM C 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11123 pcs	Data sheet	CB1-T-M-12V.pdf
Turn On Voltage (Max)	7 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	Quick Connect - 0.250" (6.3mm)	Switching Voltage	14VDC - Nom
Series	CB	Release Time	15ms
Packaging	Bulk	Other Names	255-6148 CB1-T-M-12V-ND
Operating Temperature	-40°C ~ 125°C	Operate Time	15ms
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Contact Rating (Current)	40A	Contact Material	Silver Alloy, Cadmium Free
Contact Form	SPDT (1 Form C)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	103 Ohms
Coil Power	1.4 W	Coil Current	117mA
