CB1AH-T-P-24V

Panasonic

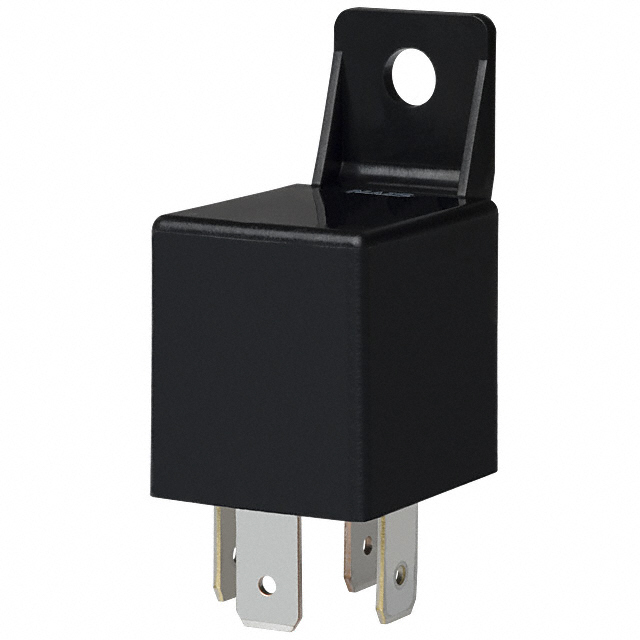

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CB1AH-T-P-24V
Manufacturer/Brand:	Panasonic
Product description	CB RELAY HR 1 FORM A 24V
Datasheets:	CB1AH-T-P-24V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11283 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11283 pcs

Reference Price (In US Dollars)

1 pcs: $3.238

10 pcs: $3.035

25 pcs: $2.697

50 pcs: $2.563

100 pcs: $2.428

250 pcs: $2.158

500 pcs: $2.023

1000 pcs: $1.888

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.238

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CB1AH-T-P-24V

Part Number	CB1AH-T-P-24V	Manufacturer	Panasonic
Description	CB RELAY HR 1 FORM A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11283 pcs	Data sheet	CB1AH-T-P-24V.pdf
Turn On Voltage (Max)	14 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	CB	Release Time	15ms
Packaging	Bulk	Other Names	255-6154 CB1AH-T-P-24V-ND
Operating Temperature	-40°C ~ 125°C	Operate Time	15ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Contact Rating (Current)	70A	Contact Material	Silver Alloy, Cadmium Free
Contact Form	SPST-NO (1 Form A)	Coil Voltage	24VDC
Coil Type	Non Latching	Coil Resistance	411 Ohms
Coil Power	1.4 W	Coil Current	58.0mA
