CM1A-R-12V

Panasonic

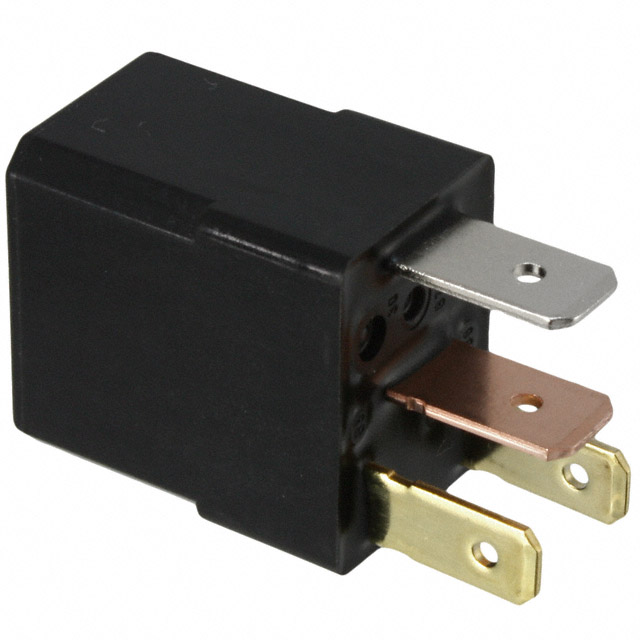

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CM1A-R-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPST 35A 12V
Datasheets:	1.CM1A-R-12V.pdf 2.CM1A-R-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21970 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21970 pcs

Reference Price (In US Dollars)

1 pcs: $1.644

10 pcs: $1.541

25 pcs: $1.37

50 pcs: $1.301

100 pcs: $1.233

250 pcs: $1.096

500 pcs: $1.027

1000 pcs: $0.959

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.644

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CM1A-R-12V

Part Number	CM1A-R-12V	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPST 35A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21970 pcs	Data sheet	1.CM1A-R-12V.pdf 2.CM1A-R-12V.pdf
Turn On Voltage (Max)	7 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	Plug In	Switching Voltage	14VDC - Nom
Series	CM	Release Time	10ms
Packaging	Bulk	Other Names	255-3729 CM1A-R-12V-ND CM1AR12V
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Socketable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Resistor, Sealed - Fully
Contact Rating (Current)	35A	Contact Material	Silver Alloy, Cadmium Free
Contact Form	SPST-NO (1 Form A)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	96 Ohms
Coil Power	1.7 W	Coil Current	125mA
