SG-D1-2C11

Panasonic

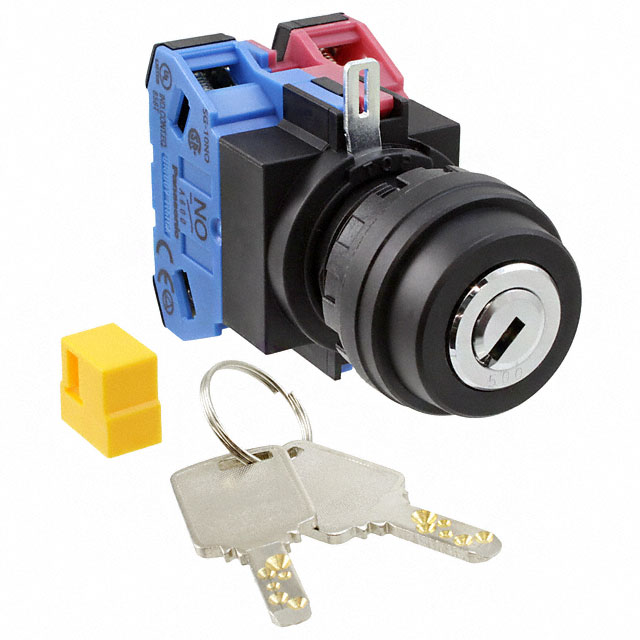

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SG-D1-2C11
Manufacturer/Brand:	Panasonic
Product description	SWITCH KEYLCK 2POS DPST 10A 110V
Datasheets:	SG-D1-2C11.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	796 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 796 pcs

Reference Price (In US Dollars)

1 pcs: $39.653

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$39.653

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SG-D1-2C11

Part Number	SG-D1-2C11	Manufacturer	Panasonic
Description	SWITCH KEYLCK 2POS DPST 10A 110V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	796 pcs	Data sheet	SG-D1-2C11.pdf
Voltage Rating - DC	24V	Voltage Rating - AC	110V
Termination Style	Screw Terminal	Switch Function	On-Off, Off-On
Series	SG-D1	Panel Cutout Dimensions	Circular - 22.30mm Dia
Other Names	1110-3515	Operating Temperature	-25°C ~ 60°C
Number of Positions	2	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Key Removable Positions	2 only
Features	IP65	Electrical Life	100,000 Cycles
Detailed Description	Keylock Switch 2 Position DPST-NO/NC 10A (AC), 8A (DC) 110VAC 24VDC Panel Mount	Depth Behind Flange	49.40mm
Current Rating	10A (AC), 8A (DC)	Contact Timing	Not Specified
Contact Material	-	Contact Finish	-
Circuit	DPST-NO/NC	Angle of Throw	90°
Actuator Type	Flat Key
