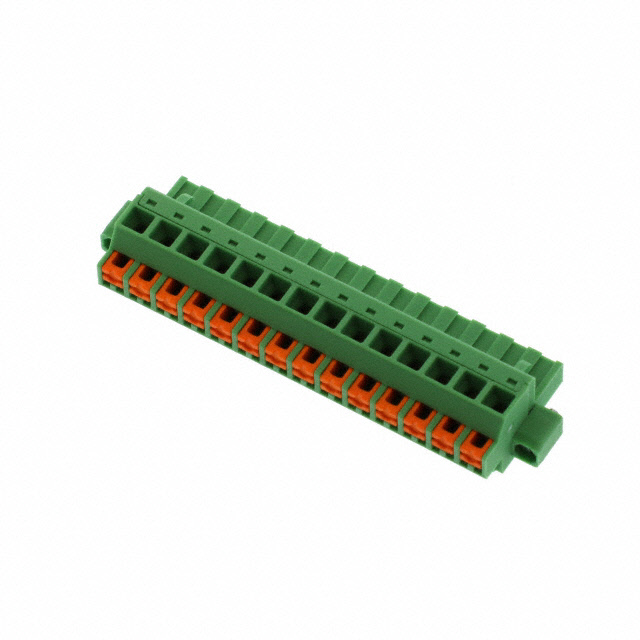

Phoenix Contact
| Part Number | 1861580 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLOCK PLG 14POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7963 pcs | Data sheet | 1861580.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | COMBICON FKCOR | Screw Size | - |
| Positions Per Level | 14 | Plug Wire Entry | 90° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 277-17570 FKCOR 2,5/14-STF-5,08 |
Operating Temperature | - |
| Number of Positions | 14 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.933" (23.70mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Lever Actuated, Mating Flange, Retention Latches (Non-Wire Side) | Detailed Description | 14 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Current - UL | 12A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
