2SD315AI UL

Power Integrations

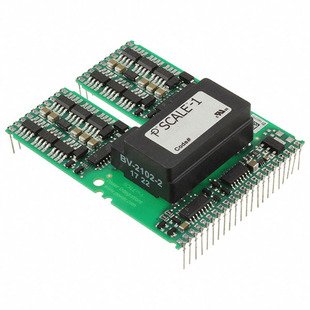

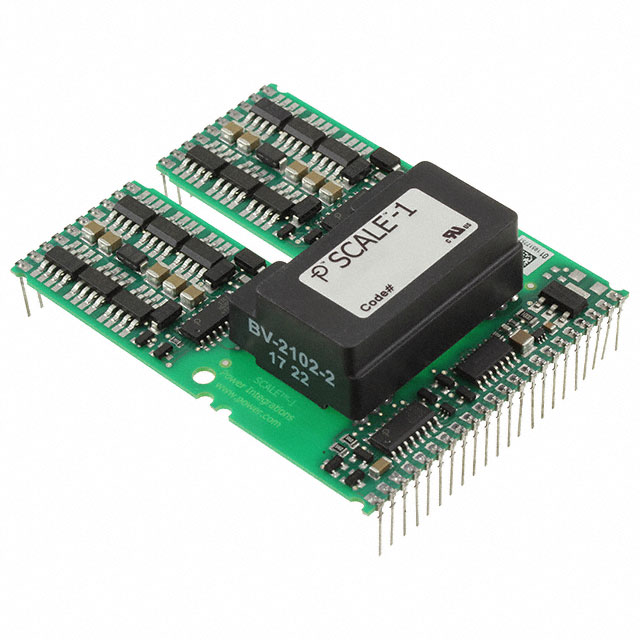

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SD315AI UL
Manufacturer/Brand:	Power Integrations
Product description	IC DUAL GATE DRIVER 18A
Datasheets:	1.2SD315AI UL.pdf 2.2SD315AI UL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	742 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 742 pcs

Reference Price (In US Dollars)

1 pcs: $39.347

10 pcs: $33.444

40 pcs: $31.477

100 pcs: $28.706

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$39.347

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SD315AI UL

Part Number	2SD315AI UL	Manufacturer	Power Integrations
Description	IC DUAL GATE DRIVER 18A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	742 pcs	Data sheet	1.2SD315AI UL.pdf 2.2SD315AI UL.pdf
Voltage - Supply	15V	Supplier Device Package	Module
Series	SCALE™-1	Rise / Fall Time (Typ)	-
Packaging	Tray	Package / Case	Module
Other Names	1810-1001	Operating Temperature	-40°C ~ 85°C (TA)
Number of Drivers	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Logic Voltage - VIL, VIH	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	-
Gate Type	IGBT, N-Channel, P-Channel MOSFET	Driven Configuration	Half-Bridge
Detailed Description	Half-Bridge Gate Driver IC Module	Current - Peak Output (Source, Sink)	18A, 18A
Channel Type	-
