A1P25S12M3

STMicroelectronics

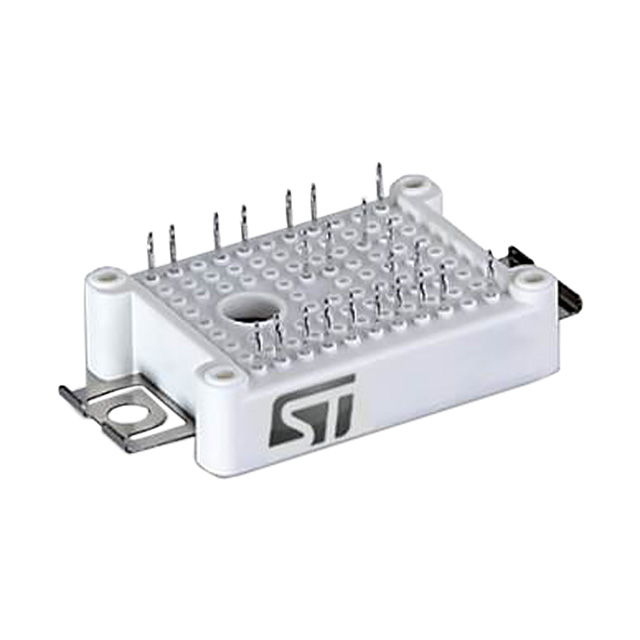

Image may be representation. See specifications for product details.

Product Overview

Part Number:	A1P25S12M3
Manufacturer/Brand:	STMicroelectronics
Product description	IGBT TRENCH 1200V 25A ACEPACK1
Datasheets:
Stock Condition	2684 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2684 pcs

Reference Price (In US Dollars)

1 pcs: $13.522

22 pcs: $12.472

110 pcs: $10.65

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$13.522

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of A1P25S12M3

Part Number	A1P25S12M3	Manufacturer	STMicroelectronics
Description	IGBT TRENCH 1200V 25A ACEPACK1	Lead Free Status / RoHS Status
Quantity Available	2684 pcs	Data sheet
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.45V @ 15V, 25A
Supplier Device Package	ACEPACK™ 1	Series	-
Power - Max	197W	Package / Case	Module
Other Names	497-17738	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Input Capacitance (Cies) @ Vce	1550pF @ 25V
Input	Standard	IGBT Type	Trench Field Stop
Detailed Description	IGBT Module Trench Field Stop Three Phase Inverter 1200V 25A 197W Chassis Mount ACEPACK™ 1	Current - Collector Cutoff (Max)	100µA
Current - Collector (Ic) (Max)	25A	Configuration	Three Phase Inverter
