A2C35S12M3-F

STMicroelectronics

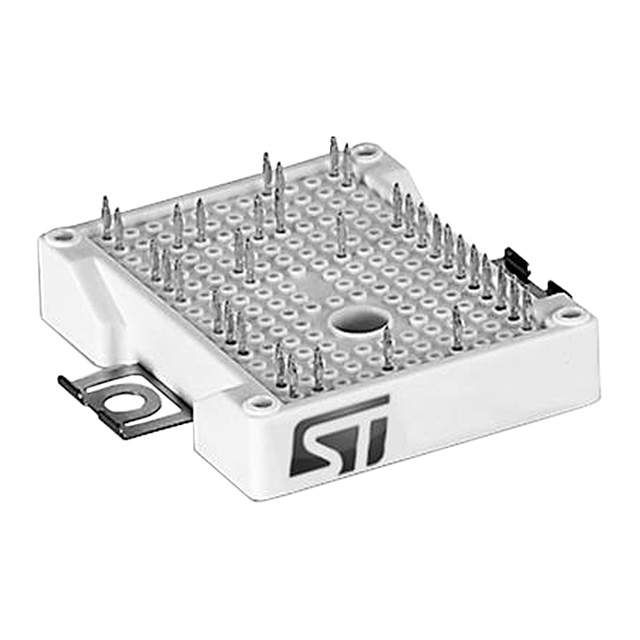

Image may be representation. See specifications for product details.

Product Overview

Part Number:	A2C35S12M3-F
Manufacturer/Brand:	STMicroelectronics
Product description	IGBT TRENCH 1200V 35A ACEPACK2
Datasheets:	A2C35S12M3-F.pdf
Stock Condition	1734 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1734 pcs

Reference Price (In US Dollars)

1 pcs: $19.289

14 pcs: $18.12

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$19.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of A2C35S12M3-F

Part Number	A2C35S12M3-F	Manufacturer	STMicroelectronics
Description	IGBT TRENCH 1200V 35A ACEPACK2	Lead Free Status / RoHS Status
Quantity Available	1734 pcs	Data sheet	A2C35S12M3-F.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.45V @ 15V, 35A
Supplier Device Package	ACEPACK™ 2	Series	-
Power - Max	250W	Package / Case	Module
Other Names	497-17755 A2C35S12M3-F-ND	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	Not Applicable	Input Capacitance (Cies) @ Vce	2154pF @ 25V
Input	Three Phase Bridge Rectifier	IGBT Type	Trench Field Stop
Detailed Description	IGBT Module Trench Field Stop Three Phase Inverter with Brake 1200V 35A 250W Chassis Mount ACEPACK™ 2	Current - Collector Cutoff (Max)	100µA
Current - Collector (Ic) (Max)	35A	Configuration	Three Phase Inverter with Brake
