Samtec, Inc.

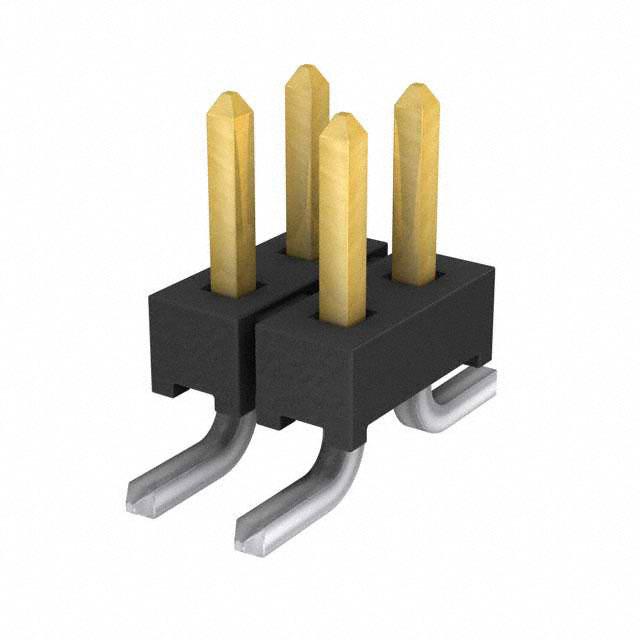

| Part Number | TMM-102-01-L-D-SM | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138689 pcs | Data sheet | 1.TMM-102-01-L-D-SM.pdf2.TMM-102-01-L-D-SM.pdf3.TMM-102-01-L-D-SM.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | TMM | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | SAM10187 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
| Current Rating | 3.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
