WT1005690-12K2-A6-G

TDK Corporation

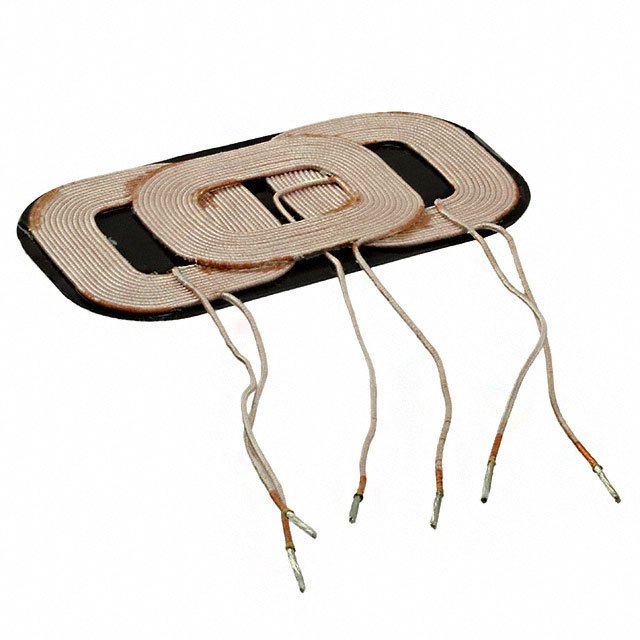

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WT1005690-12K2-A6-G
Manufacturer/Brand:	TDK Corporation
Product description	TX 3 COIL 1 LAYER 11.5 - 12.5UH
Datasheets:	WT1005690-12K2-A6-G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7532 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7532 pcs

Reference Price (In US Dollars)

1 pcs: $3.856

36 pcs: $3.373

108 pcs: $2.891

504 pcs: $2.698

1008 pcs: $2.563

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.856

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WT1005690-12K2-A6-G

Part Number	WT1005690-12K2-A6-G	Manufacturer	TDK Corporation
Description	TX 3 COIL 1 LAYER 11.5 - 12.5UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7532 pcs	Data sheet	WT1005690-12K2-A6-G.pdf
Type	3 Coil, 1 Layer	Tolerance	-
Size / Dimension	3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm)	Series	WT
Q @ Freq	-	Other Names	445-16096
Operating Temperature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	11.5 ~ 12.5µH
Function	Transmitter	Frequency - Self Resonant	-
Detailed Description	3 Coil, 1 Layer 11.5 ~ 12.5µH Wireless Charging Coil Transmitter 80 mOhm	DC Resistance (DCR)	80 mOhm
Current Rating	-	Current - Saturation	-
